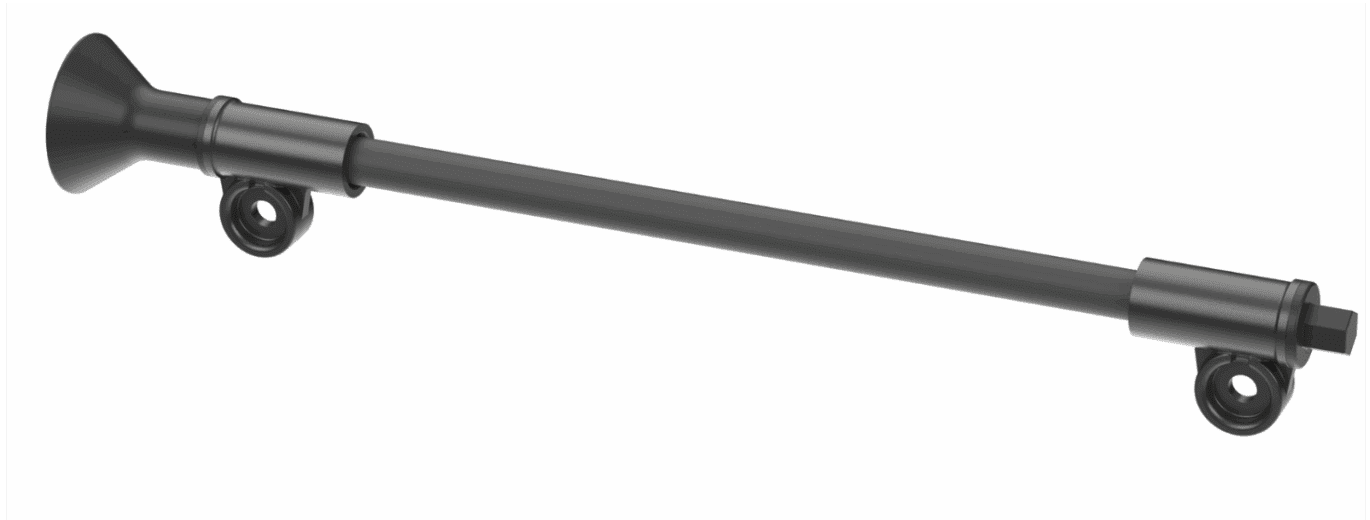

Cable Adjuster

Cable Adjusters allow access to adjusting systems which are in difficult to reach areas. The modular assembly can reduce components and eliminate complex gear train designs. This product provides design freedom for engineering and installed cost saving for purchasing.

Uses

Aiming of headlamp and fog lamp reflectors.

Benefits

• Simple attachment method at original access point – 6 mm external hex drive
• Cable can be incorporated with a right angle adjuster
• Solves difficult to reach access point issues for aiming
• Design assistance available for allowable bend radius and recommended mounting

Specifications

• Minimum torsional value of cable assembly is 2.5Nm using Cross Recess Drive
• Cable Material in Stainless
• Minimum bend radius of 60.0 mm
• Multiple input and output drives can be available upon request
• Multiple cable lengths can be available upon request
