Component Adjustment System with (P-LOCK)
Aiming Adjusters
Part Number: NA
Description

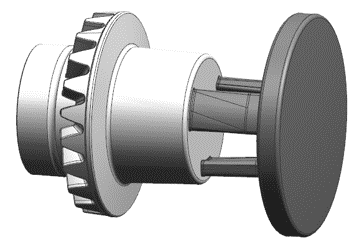

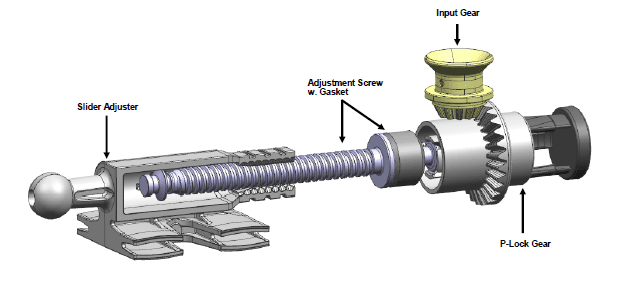

The P-Lock is an Integrated Drive Gear System for vertical and horizontal headlamp aiming. This system utilizes 2K molding to incorporate a main drive gear together with a push button lock, in a ready-to-install assembly. The P-Lock is currently used with a manufactured plastic or metal screw, spindle, and bevel gear to complete the assembly.
Uses
Used for vertical and horizontal automotive head lamp aiming.
Benefits
- Integrates with existing ASYST steel and plastic spindles
- Minimizes rotational clearance
- Easy installation
- Robust, secure locking
- Design flexibility
- 100% automated testing of torque
- For higher temperature use of metal screw in system is possible
PDF Download of (P-Lock Product Data Sheet)
P-Lock SpecificationsÂ
| Installation Step | Screw Material | Force/Torque Value |
|---|---|---|
| P-Lock to Screw Installation | Steel | ~ 30 N |
| Plastic | ~ 25 N | |
| P-Lock to Final Position | Steel | ~ 180 N |
| Plastic | ~ 170 N | |
| P-Lock Off Force | Steel | ~ 1230 N |
| Plastic | ~ 1180 N | |
| Destructive Torque | Steel | ~ 3 Nm |
| Plastic | ~ 1.5 Nm |
